Olikara Power Max Diesel
The Power Max Diesel is the all-rounder powerhouse of the Olikara line of lighting towers. If you have a need for lighting towers, chances are this is the one you’re looking for.
Payment Plans and Financing Options available.
For more information, get in touch:
...to see feature
Lighting 156,000 lumens
over 4,800m²
Easy to use, easy to access,
all-in-one control box
No noise when running on batteries.
Quick and easy setup with
extendable support legs
| Feature | Specification |
|---|---|
| Travel Dimensions | 2.4m x 1.18m x 2.3m |
| Operation Dimensions | 2.4m x 2.74m x 7m |
| Weight | 1090kg wet |
| Engine | Mitsubishi L2E 2 Cylinder, water cooled, 1500rpm - Kubota, Perkins and Yanmar also available. |
| Power Output | NSM (Italy) Brushless Alternator 3.5kW |
| Lamps | 4x 300W (1200W total) LED Light Heads, Meanwell Drivers |
| Light Output | 156,000 lumens |
| Lighting Coverage | 4800m² |
| Light Positioning | 0-90° Electrical Light Bar Tilt |
| Lighting Rotational Range | 350° Mast Rotation |
| Control System | DSE 4520 Controller |
| Mast Deployment | Hydraulic. Up to 7metres |
| Runtime | 96hours - 8 x 12hour shifts |
| Fuel Capacity | 60L / 170L (Diesel / Optional) |
| Fuel Containment | 110% Bunding |

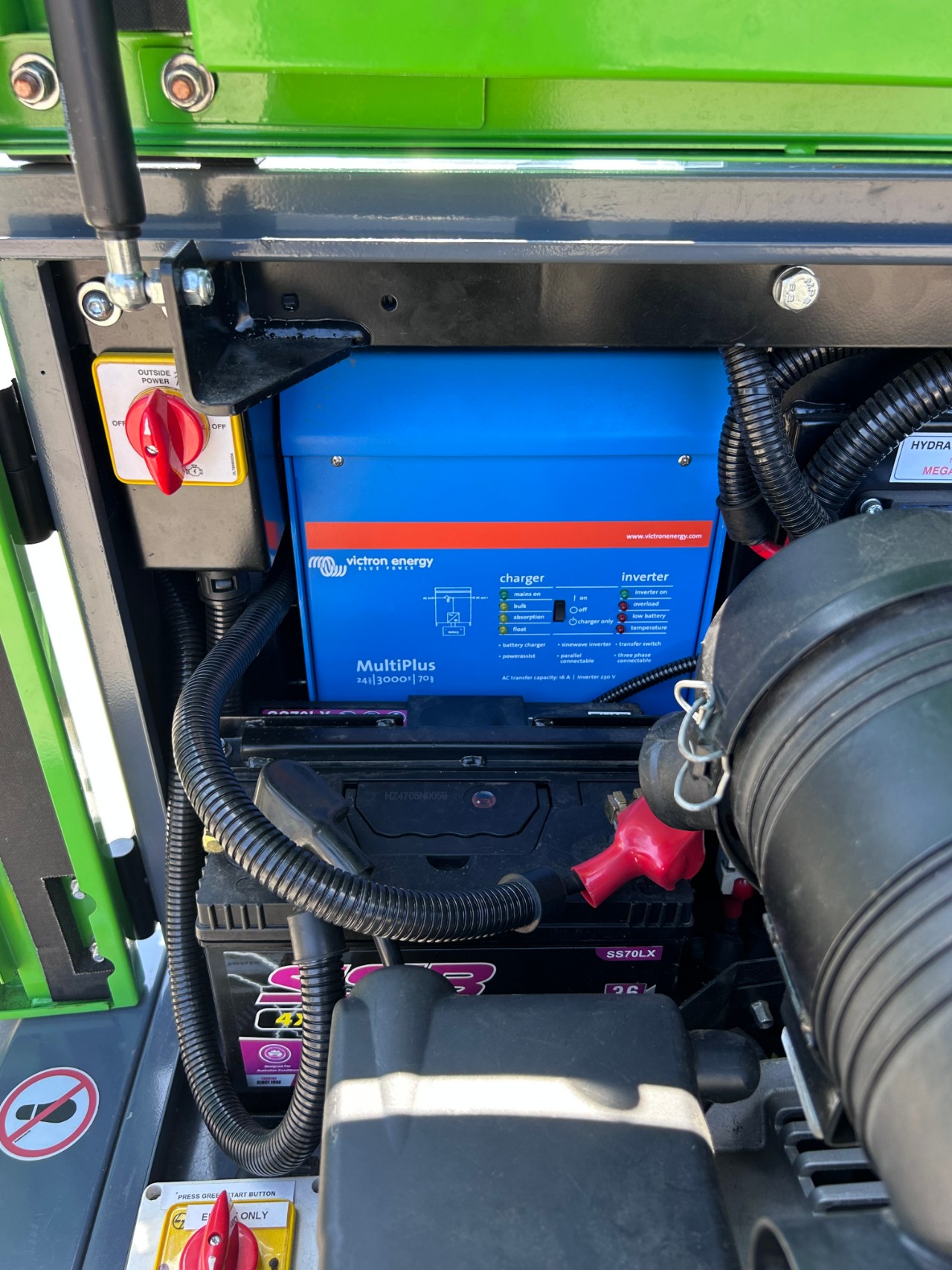

| Battery Management | Victron Battery Management |
| Battery Bank | Lithium 300Ah |
| Stability / Support System | 4 x Extendable Heavy Duty Stabiliser Outriggers |
| Wheels and Tyres | 13" Sunraysia Rims with ADR approved light truck tyres |
| Trailer Lighting | LED Tail Lights and Licence Plate Light with 7pin flat plug |
| Noise Level | 58dB at 7m distance |
| Towing Hardware | German made AL-KO Drawbar with 50mm Ball Hitch |
| Suspension | German made AL-KO Torsion Suspension |
| Transportation | Centre Point Lifting and Forklift pockets on all 4 sides. 10 Units on standard semi trailer. |
Built for dusty worksites, our lighting towers handle dirt and airborne grit without clogging up or carrying on. They keep running strong and delivering steady reliable light, even when the air is thick with dust.
Made for thick fog and low visibility, our lighting towers keep your site bright and easy to see. They push out consistent reliable light so work can carry on safely, even when the weather is not playing nice.
Heavy rain can put a damper on your spirits, and your project! Our lighting towers are manufactured with top of the range extension supports and piercing lights so that you can continue working even when it's pouring.
Our lighting towers are built for high winds, so they stay stable when strong gusts sweep across the site. They continue to deliver steady light, even when high winds push against the mast and frame.
Scorching heat can wear down crews and equipment fast. Our lighting towers are built to handle hot climates with tough components and reliable performance, so you can keep the job moving even when the temperature climbs.
When the sun goes down, the job does not have to. Our lighting towers provide powerful, reliable illumination that turns night into day, so crews can work safely and stay productive after dark.
Working off grid does not mean working in the dark. Our lighting towers run independently with reliable power and strong output, so you can keep the site moving even when there is no mains supply in sight.
Remote locations can make logistics and access more challenging. Our lighting towers are built to operate reliably in isolated areas, delivering strong consistent light so your team can work safely no matter how far off the map the job takes you.
Rough ground? She’ll be right. Our lighting towers are built tough for rocky tracks, muddy worksites and uneven patches where other gear would struggle. Set them up, power them on, and get solid, reliable light without the drama.
Construction sites move fast and do not stop when the light fades. Our lighting towers provide powerful reliable illumination that keeps crews safe, productive and on schedule from early starts to late finishes.
In emergency response situations, clear visibility can make all the difference. Our lighting towers deliver bright reliable light that helps crews assess, respond and work safely in high pressure conditions, day or night.
Mining operations run around the clock in tough conditions. Our lighting towers provide strong reliable light that supports safe work across pits, haul roads and processing areas, helping crews stay productive through every shift.
Outdoor events rely on good lighting to keep things running smoothly and safely. Our lighting towers provide bright reliable light for concerts, festivals, sporting events and community gatherings, helping organisers create a safe and welcoming environment once the sun goes down.
Railworks often happen at night or during tight shutdown windows where time matters. Our lighting towers provide strong reliable light along tracks and work zones, helping crews carry out maintenance and upgrades safely and efficiently.
Roadworks often take place at night to reduce traffic disruption. Our lighting towers provide bright reliable light across lanes and work zones, helping crews work safely while keeping drivers clearly aware of the site.
The Power Max Diesel is the all-rounder powerhouse of the Olikara line of lighting towers. If you have a need for lighting towers, chances are this is the one you’re looking for.
